Gen2 not firing
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
badapple View Drop Down
Premium Member
Premium Member
Avatar

Joined: 03 Nov 2014
Location: Norwich United Kingdom
Status: Offline
Points: 5776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote badapple Quote  Post ReplyReply Direct Link To This Post Topic: Gen2 not firing
    Posted: 14 Aug 2022 at 15:31
Hi all. Got a friend who's an instructor with msv and his 07plt gen2 has died but he's working tomorrow.

Key on , dash on but no cranking as if the kill switch is on. Will turn over if we bridge the solenoid.

Not the tip over
Not the battery
Not the ignition barrel or key
Not the sidestand switch

Any ideas? Only thing we haven't swapped or checked is the ecu.

Any help gratefully received.
I started out with nothing and I've still got most of it left
Back to Top
cheesy View Drop Down
Premium Member
Premium Member
Avatar
top chef!

Joined: 11 Feb 2008
Location: Peterborough
Status: Offline
Points: 1761 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cheesy Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 15:42
Immobiliser?
04 Tuono Fighter
1060 gen2 motor & some....
Back to Top
badapple View Drop Down
Premium Member
Premium Member
Avatar

Joined: 03 Nov 2014
Location: Norwich United Kingdom
Status: Offline
Points: 5776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote badapple Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 16:19
Forgot to add that Chris we've swapped that out too with a complete lockset no joy but a good shout.
I started out with nothing and I've still got most of it left
Back to Top
cheesy View Drop Down
Premium Member
Premium Member
Avatar
top chef!

Joined: 11 Feb 2008
Location: Peterborough
Status: Offline
Points: 1761 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cheesy Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 16:27
Could it be the clutch switch been dislodged?
Can't remember what symptoms gives when it happens
04 Tuono Fighter
1060 gen2 motor & some....
Back to Top
badapple View Drop Down
Premium Member
Premium Member
Avatar

Joined: 03 Nov 2014
Location: Norwich United Kingdom
Status: Offline
Points: 5776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote badapple Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 16:43
Could be I'm now at work for the night so I've had to leave him to it I'll text him. Oddly the neutral light wouldn't come on although it was in neutral. Do you know where/what that sensor is mate?
I started out with nothing and I've still got most of it left
Back to Top
cheesy View Drop Down
Premium Member
Premium Member
Avatar
top chef!

Joined: 11 Feb 2008
Location: Peterborough
Status: Offline
Points: 1761 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cheesy Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 16:43
Directly under the body of the m/c
04 Tuono Fighter
1060 gen2 motor & some....
Back to Top
wigginsjp View Drop Down
Premium Member
Premium Member
Avatar

Joined: 11 Feb 2008
Location: calne
Status: Offline
Points: 3485 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wigginsjp Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 17:04
I’d bridge the clutch switch and the side stand switch out.

I’ve a clutch switch somewhere I think if proper stuck? Maybe you’ve one in spares already Adam. I’d still chop it out regardless.

Otherwise nose off and look at the loom where it runs ynder the air intake. They wear through the insulation and cause all sorts of issue there too
Aprilia RSVR Factory 2007 V2 1060cc Big Bore
Aprilia RSVR Factory 2004 Race Bike
Kawasaki ZX10R 2007 Race Bike
Aprilia Tuono V4 1100 Factory 2020
www.apriliaperformance.co.uk
www.apworkshops.co.uk
Back to Top
badapple View Drop Down
Premium Member
Premium Member
Avatar

Joined: 03 Nov 2014
Location: Norwich United Kingdom
Status: Offline
Points: 5776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote badapple Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 17:46

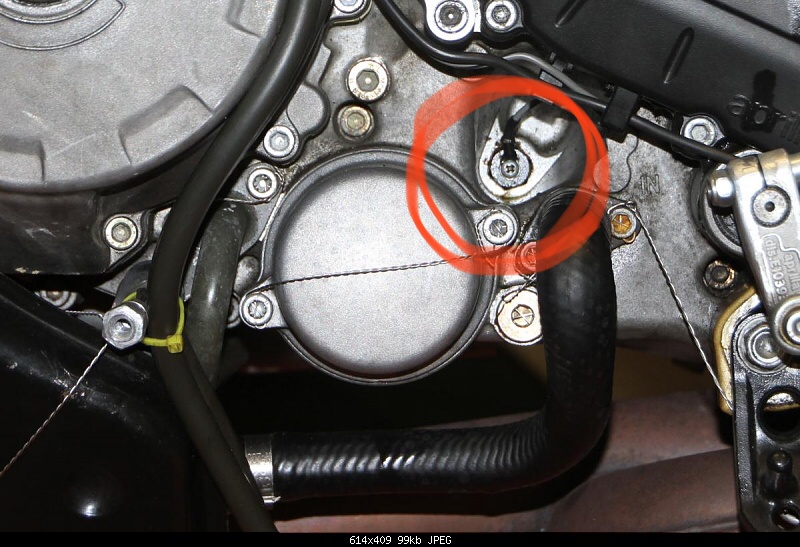

Sorry gents I wasn't clear . I know where the clutch switch is and I sold my last one to Jon ( Ice-mille) a couple of weeks ago. He has ASV levers and no clutch switch fitted. We've re-done the side stand bypass incase it was that. I meant where is the neutral light sensor as its not on even though its in neutral??

James I'll get him to check the wiring under the nose fairing Thumbs Up
I started out with nothing and I've still got most of it left
Back to Top
wigginsjp View Drop Down
Premium Member
Premium Member
Avatar

Joined: 11 Feb 2008
Location: calne
Status: Offline
Points: 3485 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wigginsjp Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 18:00
Pretty sure that’s it
Aprilia RSVR Factory 2007 V2 1060cc Big Bore
Aprilia RSVR Factory 2004 Race Bike
Kawasaki ZX10R 2007 Race Bike
Aprilia Tuono V4 1100 Factory 2020
www.apriliaperformance.co.uk
www.apworkshops.co.uk
Back to Top
Spoonz View Drop Down
Admins Group
Admins Group


Joined: 11 Feb 2008
Location: North Devon
Status: Offline
Points: 10957 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Spoonz Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 18:13
If the bike thinks it’s in gear and you have no clutch switch then it won’t start as the safety circuit will kill the starter. You either need to fit a clutch switch or fix the neutral issue. On a gen2 there is no diode pack so if the neutral switch meters out ok then either there is a wiring issue or the ecu is fubar. So fingers crossed it’s the neutral switch.

You could bridge the wires of the clutch switch connector to prove a point. ( assuming it’s a closed switch with clutch engaged)
Back to Top
badapple View Drop Down
Premium Member
Premium Member
Avatar

Joined: 03 Nov 2014
Location: Norwich United Kingdom
Status: Offline
Points: 5776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote badapple Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 20:12
Originally posted by wigginsjp wigginsjp wrote:

Pretty sure that’s it



Thumbs Up
I started out with nothing and I've still got most of it left
Back to Top
badapple View Drop Down
Premium Member
Premium Member
Avatar

Joined: 03 Nov 2014
Location: Norwich United Kingdom
Status: Offline
Points: 5776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote badapple Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2022 at 20:13
Originally posted by Spoonz Spoonz wrote:

If the bike thinks it’s in gear and you have no clutch switch then it won’t start as the safety circuit will kill the starter. You either need to fit a clutch switch or fix the neutral issue. On a gen2 there is no diode pack so if the neutral switch meters out ok then either there is a wiring issue or the ecu is fubar. So fingers crossed it’s the neutral switch.

You could bridge the wires of the clutch switch connector to prove a point. ( assuming it’s a closed switch with clutch engaged)

He's tried a separate ecu and no different I'll see if he has a clutch switch as it's a race bike I'm not sure if he has.
Thanks for all the advice as ever gents.
