Std settings on Ohlins rear shock. |
Post Reply
|
| Author | |
Eyore
Moto2 racer
Joined: 23 May 2015 Location: Ireland Status: Offline Points: 185 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Std settings on Ohlins rear shock.Posted: 02 Oct 2015 at 19:10 |
|
Just picked up an Ohlins shock to replace the std Sachs on my 2004 Gen 1 RSV R Tuono.
Just been looking at the Owners handbook which dosent give settings for the Ohlins. Can anyone please give me the standard base settings as a starting point.  |
|
 |
|
|
Administrator
Admins Group
Joined: 11 Feb 2008 Status: Offline Points: 290 |
Post Options
Thanks(0)
Quote Reply
Posted: 02 Oct 2015 at 22:34 |
|

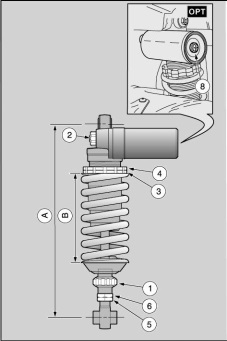

Rear suspension Standard adjustment Shock absorber centre distance (A) 312 ±1.5 mm (12.28 ± 0.59 in) Spring length (preloaded) (B) 145 mm (5.71 in) Rebound adjustment, ring nut (1) from completely closed (*) open (**) 20 clicks Compression adjustment, knob (2) from completely closed (*) open (**) 12 clicks  |
|
|
|
|
Eyore
Moto2 racer
Joined: 23 May 2015 Location: Ireland Status: Offline Points: 185 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Oct 2015 at 08:11 |
|
Thanks Admin, appreciated.
|
|
|
|
|
Eyore
Moto2 racer
Joined: 23 May 2015 Location: Ireland Status: Offline Points: 185 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Oct 2015 at 16:14 |
|
Seem to have fu**ed up
  I picked up the rear Ohlins which was supposed to be for an Tuono RSVR 05 on.Turns out I have an AP8271 rear shock which is listed for an 04 to 09 RSVR or an 06 to 10 Tuono. Its too short by about 6mm so presumably there is no way around the issue? Anyone want to buy it?
|
|
|
|
|
badapple
Premium Member
Joined: 03 Nov 2014 Location: Norwich United Kingdom Status: Offline Points: 5776 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Oct 2015 at 18:06 |
What do you want for it? |
|
|
I started out with nothing and I've still got most of it left
|
|
|
|
|
Eyore
Moto2 racer
Joined: 23 May 2015 Location: Ireland Status: Offline Points: 185 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Oct 2015 at 18:12 |
|
Cost me £265 plus postage, you can have if for the same if that's any good to you.
|
|
|
|
|
badapple
Premium Member
Joined: 03 Nov 2014 Location: Norwich United Kingdom Status: Offline Points: 5776 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Oct 2015 at 23:58 |
|
Was just curious really I need one as my sachs is knackered. Not sure what I'm going to buy yet.
|
|
|
I started out with nothing and I've still got most of it left
|
|
|
|
|
