   Hello folks,Forgive me if this topic has been covered. If it has been please push me in the right direction.
Has anyone got pics of the frame earth wiring route and the engine one?
If so I would be extremely grateful for any pics.
Got a few wiring issues on the old girl.
Cheers to all,
Josh

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Sirduke998 Members Profile Send Private Message Find Members Posts Add to Buddy List Moto3 racer Joined: 15 Feb 2025 Location: DUBAI Status: Offline Points: 21	Post Options Post Reply Quote Sirduke998 Report Post Thanks(0) Quote Reply Topic: gen 1 mille earth wire confusion Posted: 15 Feb 2026 at 16:04
	Hello folks, Forgive me if this topic has been covered. If it has been please push me in the right direction. Has anyone got pics of the frame earth wiring route and the engine one? If so I would be extremely grateful for any pics. Got a few wiring issues on the old girl. Cheers to all, Josh

Spoonz Members Profile Send Private Message Find Members Posts Add to Buddy List Admins Group Joined: 11 Feb 2008 Location: North Devon Status: Offline Points: 10957	Post Options Post Reply Quote Spoonz Report Post Thanks(0) Quote Reply Posted: 15 Feb 2026 at 17:01

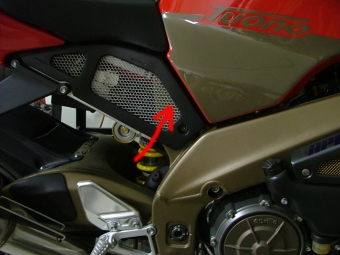

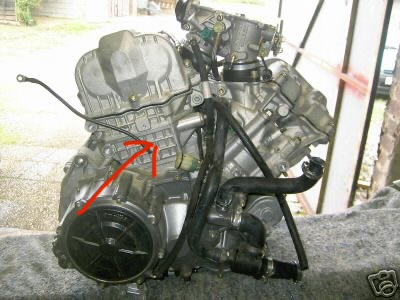

	From memory on the right frame spar below the seat tank meeting point and the right side of the rear cylinder

Sirduke998 Members Profile Send Private Message Find Members Posts Add to Buddy List Moto3 racer Joined: 15 Feb 2025 Location: DUBAI Status: Offline Points: 21	Post Options Post Reply Quote Sirduke998 Report Post Thanks(0) Quote Reply Posted: 16 Feb 2026 at 01:57
	Gday Spoonz, Thanks a bunch for the reply. May I ask the routing for the earth cable from the battery? They say from the battery to the Spar but where? Once again thanks alot. Josh

constant Members Profile Send Private Message Find Members Posts Add to Buddy List Premium Member Joined: 27 Jun 2014 Location: south london Status: Offline Points: 1072	Post Options Post Reply Quote constant Report Post Thanks(0) Quote Reply Posted: 16 Feb 2026 at 03:21
	where spoonz is pointing it is on the inside i think they all earth there

redratbike Members Profile Send Private Message Find Members Posts Add to Buddy List Moderator Group The Collector Messiah Joined: 07 May 2008 Status: Offline Points: 16331	Post Options Post Reply Quote redratbike Report Post Thanks(0) Quote Reply Posted: 16 Feb 2026 at 13:32
	Check out a couple of these videos https://youtu.be/sxfvvf_2iu4 https://youtu.be/qoY4y71e_ig


Sirduke998 Members Profile Send Private Message Find Members Posts Add to Buddy List Moto3 racer Joined: 15 Feb 2025 Location: DUBAI Status: Offline Points: 21	Post Options Post Reply Quote Sirduke998 Report Post Thanks(0) Quote Reply Posted: 17 Feb 2026 at 03:33
	Gday mate, yeah your right on the money. I was curious to see a picture of the point at which is anchors to the spar. My wiring has been d*($@# around with and im trying to sort it out. Much appreciated once again especially as you guys responded so quickly.
