How to change your Eprom

 Post Reply Post Reply
Author
Message
DrRossi View Drop Down
L Plates
L Plates
Avatar

Joined: 13 Dec 2009
Location: Eindhoven
Status: Offline
Points: 6
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrRossi Quote  Post ReplyReply Direct Link To This Post Topic: How to change your Eprom
    Posted: 15 Dec 2009 at 10:42

Since I provide Eproms I would like to help fitting them.

Here is a how to.

If you do it like in the movie there is a big change the Eprom will die of statics.





Look at the pictures and it explains itself.



Here we have the ECU.

Unscrew the 4 screws and lift up the lid





This is what it looks like inside.





This example is an Aprilia aftermarket RSV Titanium Eprom which comes with a descramble foot.

You have to take the out as well!!!

As you can see there is a notch on the white foot and on the Eprom.

They must match!!





By taking a piece of plastic and toughing the central heating first you lower the change of static electricity ruining the Eprom.





Lift one side up just a bit.





Then the other side.





Repeat this until the Eprom will come loose.





Now take your new Eprom and put it on the white Eprom foot.

Watch the notch !!

Put in one side only.





The other side will look like this.





Now push with your thumb on the side of the Eprom and push it to the side so all pins line up.



Or use the plastic tool to push each pin in while applying little pressure on top of the Eprom.





Now that's done screw the lit back together.



Adjust the trim pots to 12 o clock.





Put the connectors back in and put on the contact to hear if the fuel pump runs.



If not there is a problem.

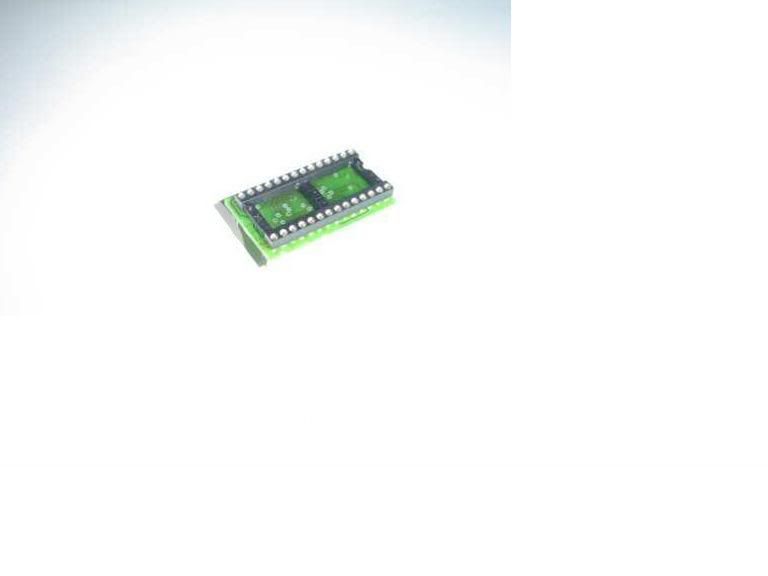

Here are examples of a descramble board.







Mine comes without is since my software is not scrambled.



Hope this helps.



DrRossi









'I don't understand bus lanes. Why do poor people have to get to places quicker than I do?'
Back to Top
kiwi_rsvr View Drop Down
Premium Member
Premium Member
Avatar
EX Dr Frankie Stein (splitter)

Joined: 10 Sep 2008
Location: Hockley, Essex
Status: Offline
Points: 3252
Post Options Post Options   Thanks (0) Thanks(0)   Quote kiwi_rsvr Quote  Post ReplyReply Direct Link To This Post Posted: 15 Dec 2009 at 10:48
Excellant , cheers Alain Clap
www.apriliaperformance.co.uk
www.apriliaforum.co.uk
www.apriliaownersclub.co.uk
Back to Top
amb67 View Drop Down
Moto GP Alien
Moto GP Alien
Avatar

Joined: 11 Feb 2008
Location: Marden in Kent
Status: Offline
Points: 769
Post Options Post Options   Thanks (0) Thanks(0)   Quote amb67 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Dec 2009 at 17:42
Excellent guide DrRossi, it has been stickied mate.  Clap




Blue ones are so much faster than black ones.
Back to Top
Spoonz View Drop Down
Admins Group
Admins Group


Joined: 11 Feb 2008
Location: North Devon
Status: Offline
Points: 9525
Post Options Post Options   Thanks (0) Thanks(0)   Quote Spoonz Quote  Post ReplyReply Direct Link To This Post Posted: 15 Dec 2009 at 18:00
wow nice post.

No more trashed eeproms. Clap
Back to Top
roadnoise View Drop Down
L Plates
L Plates


Joined: 16 Jan 2010
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote roadnoise Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 2010 at 22:12
I followed the directions here and my bike won't start.  I was installing a factory chip would that change anything? The Diagnostics code reads -1   Do you have any suggestions?

Thanks
_popupControl();
Back to Top
amb67 View Drop Down
Moto GP Alien
Moto GP Alien
Avatar

Joined: 11 Feb 2008
Location: Marden in Kent
Status: Offline
Points: 769
Post Options Post Options   Thanks (0) Thanks(0)   Quote amb67 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 2010 at 10:18
Are you sure that the chip you have is a working chip, you wouldn't beleive how many duff chips are sold on to unsuspecting people?

Is this a genuine Aprilia Factory chip or one of those Ebay specials, take a piccie of the chip and post it up so we can see what you have?

The -1 is more than likely being thrown up cause the ECU is receiving incorrect/scrambled signals due to the incompatibility factor, put the old chip back in for now and make sure all's well.

My bike shows Err and -1 on the right LCD display if I turn the ignition on without disabling the immobiliser, this is due to the immobiliser cutting the ignition feed to the ECU.

Originally posted by roadnoise roadnoise wrote:

I followed the directions here and my bike won't start.  I was installing a factory chip would that change anything? The Diagnostics code reads -1   Do you have any suggestions?

Thanks
_popupControl();




Blue ones are so much faster than black ones.
Back to Top
roadnoise View Drop Down
L Plates
L Plates


Joined: 16 Jan 2010
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote roadnoise Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jan 2010 at 01:48
I replaced the race chip and the bike runs great.    This pic is the chip I can't get to work.  I was told by previous owner that this is the original factory chip.    Thanks again for the help.





_popupControl();
Back to Top
kiwi_rsvr View Drop Down
Premium Member
Premium Member
Avatar
EX Dr Frankie Stein (splitter)

Joined: 10 Sep 2008
Location: Hockley, Essex
Status: Offline
Points: 3252
Post Options Post Options   Thanks (0) Thanks(0)   Quote kiwi_rsvr Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jan 2010 at 09:42
I have a feeling that the 549 chip is for a US Spec 2003 Tuono , it could also be faulty as they are suscepatable to static electricity , improper handling can blow them.


Originally posted by roadnoise roadnoise wrote:

I replaced the race chip and the bike runs great.    This pic is the chip I can't get to work.  I was told by previous owner that this is the original factory chip.    Thanks again for the help.





_popupControl();
Back to Top
amb67 View Drop Down
Moto GP Alien
Moto GP Alien
Avatar

Joined: 11 Feb 2008
Location: Marden in Kent
Status: Offline
Points: 769
Post Options Post Options   Thanks (0) Thanks(0)   Quote amb67 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jan 2010 at 18:39
Honest opinion mate, bin it and PM DrRossi for one of his chips.  Cry

DrRossi chips are the bollox mate, I have one fitted to mine and it smoothed the engine out like you wouldn't beleive.  Smile

Originally posted by roadnoise roadnoise wrote:

I replaced the race chip and the bike runs great.    This pic is the chip I can't get to work.  I was told by previous owner that this is the original factory chip.    Thanks again for the help.





_popupControl();




Blue ones are so much faster than black ones.
Back to Top
roadnoise View Drop Down
L Plates
L Plates


Joined: 16 Jan 2010
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote roadnoise Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jan 2010 at 02:29
unfortunately I think you are right. Angry
 My race chip is great but I'd like to get more than 120 miles between fill ups.   What kind of mpg or kpg are you getting with the dr rossi's chip?_popupControl();
Back to Top
kiwi_rsvr View Drop Down
Premium Member
Premium Member
Avatar
EX Dr Frankie Stein (splitter)

Joined: 10 Sep 2008
Location: Hockley, Essex
Status: Offline
Points: 3252
Post Options Post Options   Thanks (0) Thanks(0)   Quote kiwi_rsvr Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jan 2010 at 09:30
I have seen 165 miles to completely empty and regularly get 135 miles until the light comes on, on the track 80 - 100 miles before the light.
Back to Top
Millemille View Drop Down
Moto2 racer
Moto2 racer
Avatar

Joined: 13 Dec 2009
Location: Brightlingsea
Status: Offline
Points: 135
Post Options Post Options   Thanks (0) Thanks(0)   Quote Millemille Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jan 2010 at 09:41
If your getting 120 to a tank I think you'll find thats as good as it gets I don't think putting the dr rossi chip in will really change it.
Back to Top
Millemille View Drop Down
Moto2 racer
Moto2 racer
Avatar

Joined: 13 Dec 2009
Location: Brightlingsea
Status: Offline
Points: 135
Post Options Post Options   Thanks (0) Thanks(0)   Quote Millemille Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jan 2010 at 09:49
Thats coz you ride like an old women
Seriously though how do you manage that I normall avarage 110miles befor the light comes on and according to aprilia the fuel capacity on our bikes is 140 miles including a 3.5l reserve.
Back to Top
Spookshow View Drop Down
L Plates
L Plates


Joined: 07 Sep 2008
Status: Offline
Points: 169
Post Options Post Options   Thanks (0) Thanks(0)   Quote Spookshow Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jan 2010 at 12:49
Yeah I used to get 110 - 115 miles to reserve on my '01 Mille, and about 20 miles after that before I bottled it and filled up.

Is your odometer reading right Kiwi? Or maybe I'm just a wuss?
Back to Top
Stegedman View Drop Down
Moto2 racer
Moto2 racer


Joined: 28 Feb 2017
Location: Merseyside
Status: Offline
Points: 181
Post Options Post Options   Thanks (0) Thanks(0)   Quote Stegedman Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2017 at 16:31
How much r these chips u sell for a 2002 gen1 millie.
Back to Top
redratbike View Drop Down
Moderator Group
Moderator Group
Avatar
The Collector Messiah

Joined: 07 May 2008
Status: Offline
Points: 14841
Post Options Post Options   Thanks (0) Thanks(0)   Quote redratbike Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2017 at 16:48
Originally posted by Stegedman Stegedman wrote:

How much r these chips u sell for a 2002 gen1 millie.



holy thread revival batman !!!!! kapow!!!!
contact forza aprilia or gabro

dr rossi has been off the scene for a while ...this thread is from 2010


www.apriliaperformance.co.uk
www.apriliaforum.co.uk
www.apriliaownersclub.co.uk
Back to Top
Rybes View Drop Down
Premium Member
Premium Member
Avatar

Joined: 07 May 2015
Location: Denmark
Status: Offline
Points: 1950
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rybes Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2017 at 19:56
Originally posted by redratbike redratbike wrote:

Originally posted by Stegedman Stegedman wrote:

How much r these chips u sell for a 2002 gen1 millie.




holy thread revival batman !!!!! kapow!!!!
contact forza aprilia or gabro

dr rossi has been off the scene for a while ...this thread is from 2010


ive just got my first vtwin and i think i got the right one
Back to Top
Af1 View Drop Down
Premium Member
Premium Member
Avatar

Joined: 29 Dec 2016
Location: Herts
Status: Online
Points: 583
Post Options Post Options   Thanks (0) Thanks(0)   Quote Af1 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2017 at 20:22

Back to Top
Stegedman View Drop Down
Moto2 racer
Moto2 racer


Joined: 28 Feb 2017
Location: Merseyside
Status: Offline
Points: 181
Post Options Post Options   Thanks (0) Thanks(0)   Quote Stegedman Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2017 at 11:20
How much is a chip for 2002 millie gen1.
Back to Top
legend88 View Drop Down
Premium Member
Premium Member
Avatar

Joined: 18 Aug 2013
Location: Newcastle
Status: Offline
Points: 4943
Post Options Post Options   Thanks (0) Thanks(0)   Quote legend88 Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2017 at 12:59
Originally posted by Stegedman Stegedman wrote:

How much is a chip for 2002 millie gen1.


£50 from Ed at Forza, see here:
http://www.forzaapriliaracing.co.uk/custom_aprilia_eproms.html

He has different versions for different levels of mods to your bike. I've got one of his FR200 chips for my 2001 Mille with open airbox and modded collector and the combination transforms the bikes fueling. Definitely worth getting.
